គ្រឿងម៉ាស៊ីនបំពង់ខ្យល់និងរុះរើ Jwell DYSSG
ទីកន្លែងដើម: | ប្រទេសចិន |
ឈ្មោះម៉ាក: | ជេវែល |
វិញ្ញាបនប័ត្រ: | អាយអេសអូ CE UL TUV |
អត្ថប្រយោជន៍ប្រកួតប្រជែង៖ | គុណភាពខ្ពស់ សមត្ថភាពខ្ពស់ ស្ថេរភាពខ្ពស់ សេវាកម្មបន្ទាប់ពីការលក់ទូទាំងពិភពលោក បទពិសោធន៍អភិវឌ្ឍន៍ជាង 30 ឆ្នាំ។ |
ការកម្មវិធី
DYSSG shredder can be used to shred the PE, PP, PVC pipe with a diameter of 1600MM, and pipes with a length of 3-6M can be directly shredded without cutting, and the speed is slow and stable.
ការពិពណ៌នា

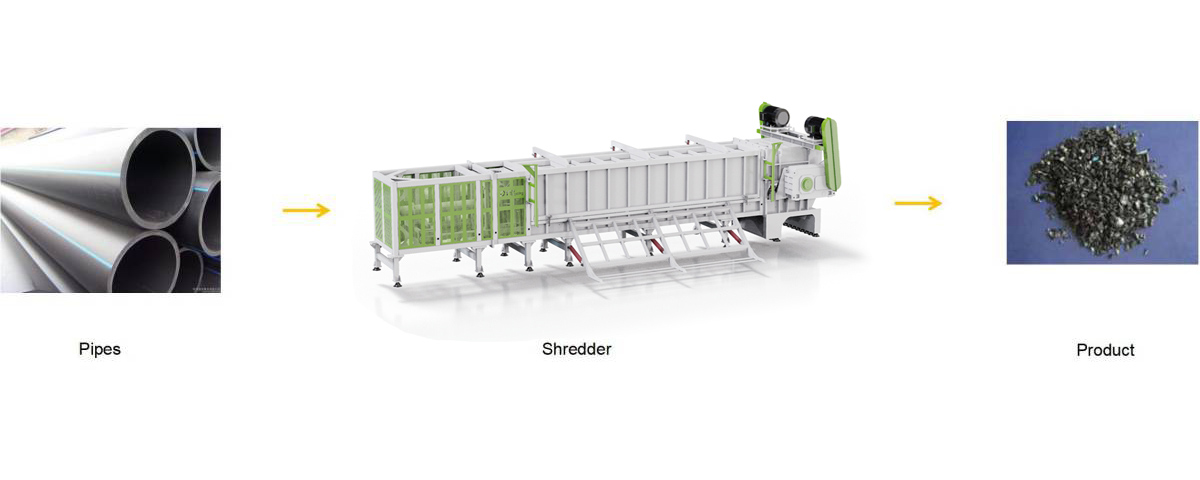

All kinds of pipe directly shred,without splitting, put the pipe into the horizontal feeding groove, feeding groove automatically closed, the pipe is pushed to the center of the shaft, through hydraulic propulsion crushing. After crushing the material through the conveyor belt into the crusher for secondary crushing, to complete the required crushing particle size. The material can be fully and effectively finely crushed in the crushing chamber, with high output, low energy consumption, high efficiency and uniform discharge finely crushed. And in the use of the equipment, low noise, no pollution, simple operation, convenient maintenance. The whole system is controlled by PLC centralized control system.
លក្ខណៈពិសេស
តារាម៉ូដែល | MAX ។ ស៊ីលឌិដភី (អង្កត់ផ្ចិត MM) | ថាមពលអគ្គីសនីបើកបរ (KW) | MECHANICAL PUSHER POWER (KW) | ចេញ PUT (KG / H) | ស្ពតប៊្លូធូសវិល (MM) | ល្បឿនរ៉ោតទ័រ (RPM) |
DYSSG- ៦៣០ | 630 | 2 * 30 | 11 | 800-1000 | Ф848 | 39 |
DYSSG- ៦៣០ | 800 | 2 * 37 | 11 | 1000-1200 | Ф1028 | 33 |
DYSSG- ៦៣០ | 1000 | 2 * 45 | 15 | 1200-1500 | Ф1258 | 27 |
DYSSG- ៦៣០ | 1200 | 2 * 55 | 15 | 1500-2000 | Ф1478 | 23 |
DYSSG- ៦៣០ | 1600 | 2 * 110 | 15 | 1800-2500 | Ф1968 | 25 |
